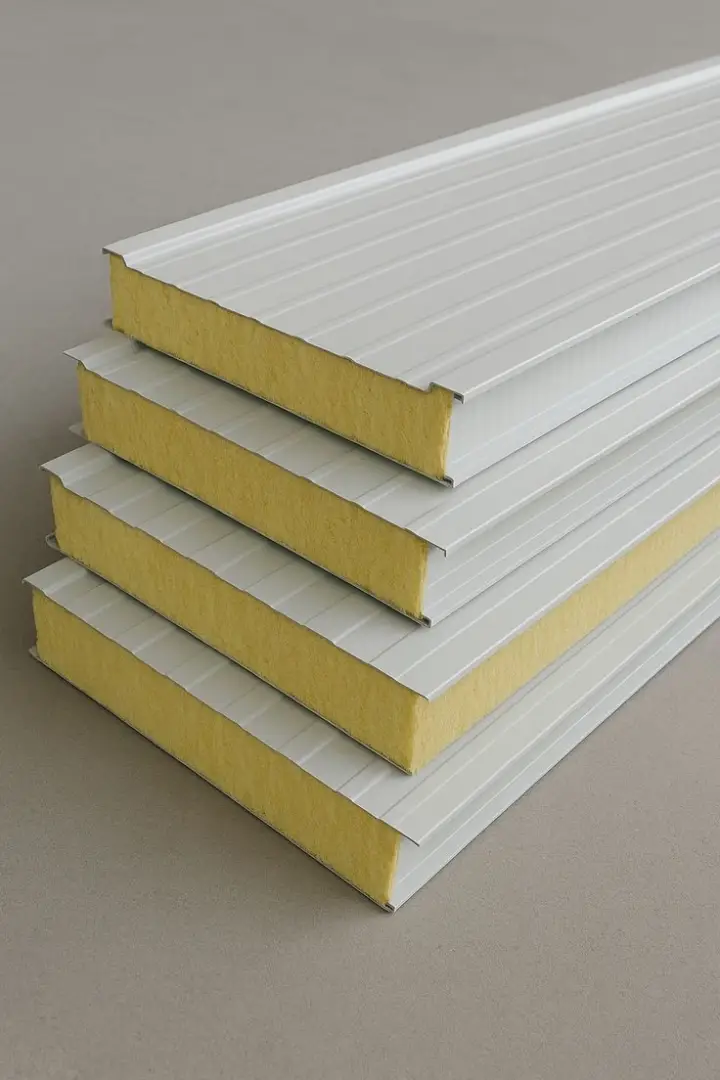

Puf sandwich Panel
- Cold Rooms
- Porta Cabins
- Clean Rooms
- Refrigeration Systems
- Refigerated Truck Bodies
- Cottage
- Tiolet Shelter, Security Cabine, Telecom Shelters.
Puf Panel Features
- Various thickness Ranging from 50-200mm.
- Width Min 200mm, Max up to 1170mm
- Length up to 6000 mm.
- Sheet Thickness of 0.5, 0.6, 0.8,1mm or above thickness.
- Panels Finish -Pre-painting Galvanized Sheets Stainless Steel Sheets.
- Polyurethane Panel's Uniform Density Is over 40 kg/m3, which provides structural
- Rigidity and Stability.
- Long Life and zero Maintainece.
- Insulated Doors Of Various Thicknesses and Sizes.
- Door panels are equipped with self closing
- Hinges to Reduce Unnecessary loss of Refrigerated air.
- The Concealed heater wire circuit inside the door frame prevents
- Condensation and frost formation at the edges of door and frame.
Properties of Puf Panel
- Puff density 40Kg/M3 or as specified by customer.
- Compressive strength 2.1 Kg/Cm2 (at 10% deformation)
- Adhesive strength (Foam to sheet) 3Kg/Cm2.
- Tensile strength 4Kg/cm2.
- Thermal Conductivity <0.023W/MK (@10C mean temp.)
- High antistatic
- Fungus proof
- Anti abrasive
- Water absorption 0.2% @ max R.H 98%.
